High Pressure Die Casting vs Gravity Casting: Which Process Is Better?

Choosing the right casting process directly affects production cost, lead time, part quality, and long-term profitability. Two of the most common permanent mold casting methods are High Pressure Die Casting (HPDC) and Gravity Casting (Permanent Mold Casting).

While both use reusable metal molds, they are designed for very different production requirements. HPDC excels in high-volume, complex parts with excellent surface quality, while Gravity Casting offers superior mechanical properties and lower tooling costs for medium-volume production.

Yuhui Die Casting provides customized aluminum die casting solutions, helping customers select the most cost-effective manufacturing process based on product structure, annual volume, and performance requirements.

Quick Comparison

1. Manufacturing Process

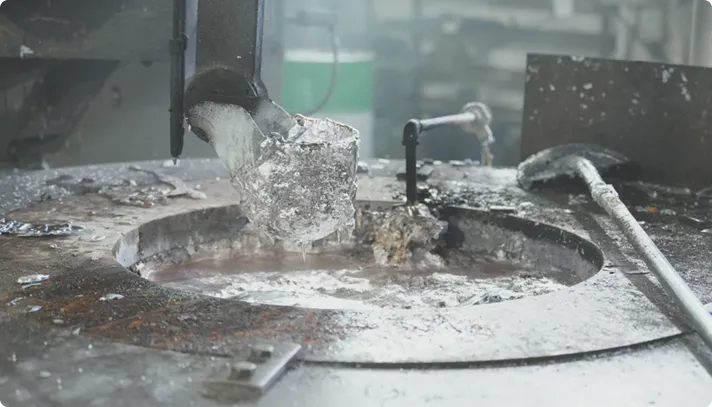

High Pressure Die Casting (HPDC)

Molten aluminum is injected into a hardened steel die under extremely high pressure, allowing the cavity to fill within fractions of a second.

Best for:

• Automotive parts

• Electronics housings

• Consumer products

• Thin-wall aluminum components

Gravity Casting (Permanent Mold Casting)

Molten metal flows naturally into the mold using gravity without injection pressure.

Because filling is slower, turbulence and air entrapment are reduced.

Best for:

• Pump housings

• Motor housings

• Valve bodies

• Heavy-duty aluminum parts

2. Cycle Time

For annual production above 10,000–20,000 pieces, HPDC generally delivers a lower unit cost because of its much higher production efficiency.

3. Tooling Cost

HPDC

Advantages:

• Suitable for automated production

• Long mold life

• High repeatability

Disadvantages:

• High initial mold investment

• Longer mold development cycle

Gravity Casting

Advantages:

• Lower tooling cost

• Easier mold modification

• Suitable for multiple product variants

This makes Gravity Casting attractive for prototype development and medium-volume projects.

4. Surface Finish

Surface quality directly affects post-processing costs.

HPDC

✔ Smooth surface

✔ Better cosmetic appearance

✔ Less polishing required

✔ Suitable for powder coating and painting

Gravity Casting

Surface quality is good but generally not as fine as HPDC.

Some machining or finishing may be required depending on customer requirements.

5. Dimensional Tolerance

HPDC

Suitable for:

• Thin-wall designs

• Precision assemblies

• Components requiring minimal machining

Gravity Casting

Provides good dimensional consistency, but machining allowances are typically larger than HPDC.

6. Mechanical Properties

This is often overlooked by first-time buyers.

HPDC

Fast filling may introduce trapped air, making parts more susceptible to internal porosity.

Therefore, HPDC is not always the best choice for components requiring pressure-tightness or post-casting welding.

Gravity Casting

Because molten metal fills more slowly:

• Lower gas porosity

• Better metal density

• Improved heat treatment capability

• Better mechanical performance for thick sections

This is why many structural aluminum components continue to use Gravity Casting despite its slower production speed.

Manufacturer Insight: Buyers Often Focus Too Much on Unit Price

One common misconception is:

"HPDC always has the lowest cost."

In reality, manufacturers evaluate the total project cost, not just the price per casting.

For example:

Annual demand of 2,000 pieces

• HPDC → High mold investment may never be recovered.

• Gravity Casting → Lower tooling cost often results in a lower overall project cost.

Annual demand of 100,000 pieces

• HPDC → Higher tooling cost is quickly offset by fast production and lower labor costs.

Professional die casting suppliers usually calculate the break-even production volume before recommending a process.

Application Recommendations

How to Choose the Right Process?

Ask these questions before requesting a quotation:

✅ Annual production quantity

✅ Part size

✅ Wall thickness

✅ Mechanical strength requirements

✅ Surface appearance requirements

✅ Heat treatment or welding requirements

The answers usually determine whether HPDC or Gravity Casting is the better option.

Why Choose Yuhui Die Casting?

Yuhui Die Casting specializes in aluminum die casting and permanent mold casting solutions for customers worldwide.

Yuhui provides:

• High Pressure Die Casting (HPDC)

• Gravity Casting (Permanent Mold Casting)

• Mold design and development

• CNC machining

• Surface finishing

• OEM & ODM manufacturing

With experienced engineers and advanced production equipment, Yuhui helps customers select the most suitable casting process based on performance requirements, production volume, and total manufacturing cost.

FAQ

Is HPDC always better than Gravity Casting?

No. HPDC is ideal for high-volume production and complex thin-wall parts, while Gravity Casting is often preferred for structural components requiring better mechanical properties.

Which process has lower tooling cost?

Gravity Casting generally requires lower tooling investment, making it more economical for medium- and low-volume production.

Can Gravity Cast parts be heat treated?

Yes. Gravity Casting typically has lower porosity, making it more suitable for heat treatment and certain structural applications than conventional HPDC.

Which casting process offers the best surface finish?

HPDC usually provides smoother surfaces and tighter dimensional tolerances, reducing the need for secondary machining.

Conclusion

There is no universal "best" casting process. The optimal choice depends on production volume, tooling budget, mechanical performance, dimensional accuracy, and lifecycle cost.

For high-volume, precision aluminum components, HPDC is often the preferred solution. For structural parts, lower-volume production, or applications requiring superior material integrity, Gravity Casting (Permanent Mold Casting) remains an excellent choice.

Yuhui Die Casting helps manufacturers choose the right casting technology to achieve the best balance between quality, efficiency, and cost.
