Custom die casting for Control Panel Brackets

Control panel brackets are essential structural components in industrial automation, robotics, and electronic equipment, providing support and secure mounting for switches, displays, controllers, and other critical devices. Their precision, durability, and stability directly affect system safety, reliability, and maintenance efficiency.

Custom die casting has become a preferred manufacturing method for control panel brackets due to its ability to produce strong, lightweight, and highly accurate parts with complex geometries tailored to specific equipment designs.

Functional Requirements of Control Panel Brackets

Control panel brackets must meet several key requirements:

• Securely support panels, displays, and control modules under mechanical stress

• Maintain precise alignment for proper interface with electrical components and wiring

• Withstand vibration, torque, and repeated operational loads

• Allow for modularity and flexibility in mounting configurations

• Resist corrosion and wear in industrial environments

Brackets that meet these standards ensure safe and reliable operation of control panels in automation and industrial systems.

Why Custom Die Casting Is Suitable

1. Complex Geometry Integration

Control panel brackets often require integrated features such as ribs, mounting holes, cable guides, or alignment bosses. Custom die casting allows these features to be combined into a single component, reducing assembly complexity and improving structural rigidity.

2. High Dimensional Accuracy

Precision die casting ensures consistent dimensions, critical for mounting switches, displays, and connectors accurately. Post-casting CNC machining can refine critical surfaces for exact fit and alignment.

3. Lightweight yet Durable

Aluminum and zinc alloys provide high strength-to-weight ratios, reducing the overall weight of control panels while maintaining structural strength to support mounted devices.

4. Corrosion and Environmental Resistance

Surface treatments such as powder coating, anodizing, or chromate conversion enhance corrosion resistance, wear protection, and durability in harsh industrial environments.

Manufacturing Process Overview

The production of custom die-cast control panel brackets typically includes:

1. Design and Tooling Development
   Engineers optimize wall thickness, draft angles, and rib placement to ensure proper castability and mechanical strength.

2. High-Pressure Die Casting (HPDC)

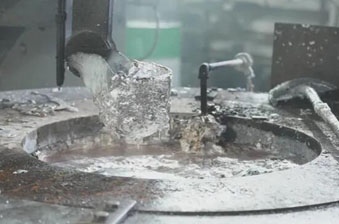

   Molten metal is injected into precision molds under controlled pressure, forming accurate and repeatable components.

3. CNC Machining
   Critical surfaces, holes, and mounting points are machined for tight tolerances and precise fit.

4. Surface Treatment
   Protective coatings, such as anodizing or powder coating, are applied to improve corrosion resistance and longevity.

5. Quality Inspection
   Dimensional verification, porosity checks, and surface integrity inspections ensure the bracket meets structural and functional requirements.

Common Materials for Control Panel Brackets

Material selection depends on strength, corrosion resistance, and casting requirements:

• ADC12 / A380 aluminum alloys – Good balance of castability and mechanical strength

• AlSi10Mg alloy – Higher strength and thermal performance for heavy-duty applications

• Zinc alloys (Zamak 3, ZA-12) – Suitable for smaller, detailed brackets requiring tight tolerances

• Custom alloys – Selected for additional corrosion resistance or mechanical requirements

The right material ensures bracket reliability and long-term performance in demanding environments.

Key Performance Considerations

Designing die-cast control panel brackets focuses on:

• Structural integrity under static and dynamic loads

• Accurate mounting for switches, displays, and controllers

• Resistance to corrosion, wear, and environmental exposure

• Lightweight design to reduce panel load and facilitate installation

• Minimizing assembly steps through integrated features

Optimized design, precise tooling, and controlled casting processes are critical to achieving these performance standards.

Application Areas

Custom die-cast control panel brackets are widely used in:

• Industrial automation and robotic control panels

• CNC machinery and automated production equipment

• Power distribution and control cabinets

• Process control and monitoring systems

• Smart factory and IoT-enabled equipment

High-quality brackets support reliable operation, precise alignment, and easy maintenance in these systems.

Engineering Coordination from Prototype to Production

Developing control panel brackets requires early collaboration between design and manufacturing teams. Prototype validation, structural simulation, and iterative testing help ensure proper fit, durability, and mounting performance before full-scale production.

A coordinated workflow that includes design review, prototyping, mold development, and mass production ensures consistent quality. You can learn more about our robotics and automation industry solutions to see how early-stage design validation and manufacturing planning are integrated for custom automation components.

Conclusion

Custom die casting provides an efficient, precise, and reliable solution for control panel brackets that require structural integrity, dimensional accuracy, and environmental durability. By combining optimized tooling, precision casting, CNC machining, and protective surface treatments, manufacturers can deliver brackets capable of supporting complex control systems in industrial and automation environments.

As industrial automation and robotics continue to evolve, precision die-cast brackets remain a critical component for efficient, durable, and modular control panel designs.
