Complete Guide of Medical Device Housing Die Casting

In the field of medical equipment manufacturing, the housing of a device is not merely an outer shell — it plays a crucial role in mechanical support, protection, heat dissipation, and structural integrity. Medical device housings must meet high standards for precision, reliability, and hygiene, as well as aesthetic and functional durability.

Compared with other forming methods, die casting offers exceptional advantages for manufacturing medical device housings that demand tight tolerances, thin walls, and consistent quality.

Yuhui Die Casting, a professional manufacturer with decades of experience, provides one-stop die casting services from mold design to surface finishing, making it a trusted partner for medical device components.

Visit Yuhui Die Casting

Yuhui Die Casting: Advanced Capabilities and Certifications

Founded in 1997, Yuhui Die Casting has over 27 years of experience in precision metal manufacturing. The company provides a complete production chain, including:

• Mold Design & Manufacturing

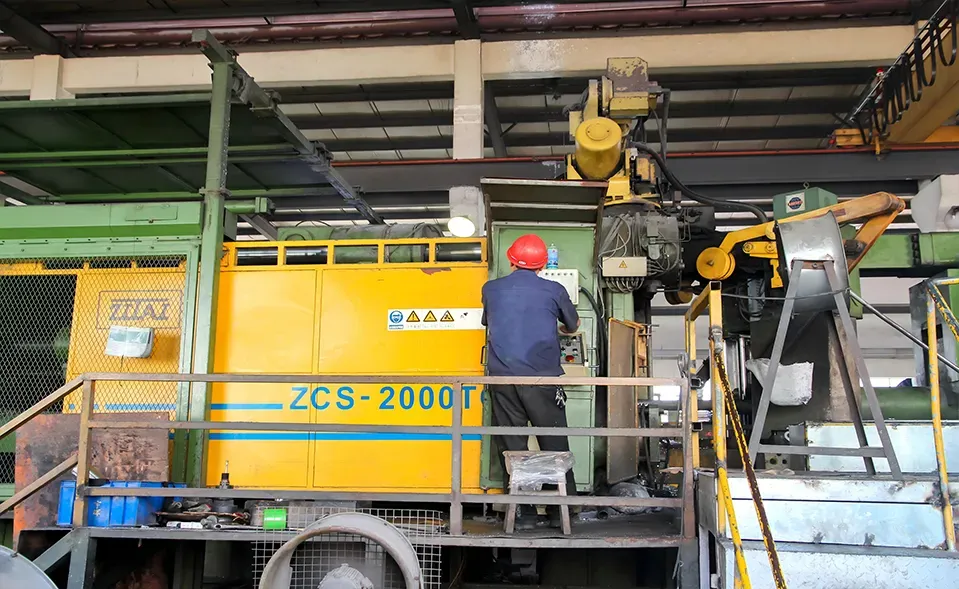

• Aluminum and Zinc Die Casting (machines ranging from 88T to 2000T)

• CNC Machining (over 50 units of 3-, 4-, and 5-axis equipment)

• Surface Treatment & Chemical Pretreatment

• Comprehensive Quality Inspection

Yuhui’s facilities are certified with ISO 9001, ISO 14001, and IATF 16949, demonstrating their commitment to strict quality and environmental management systems.

These capabilities enable Yuhui to meet the demanding requirements of industries such as medical, automotive, and electronics.

Key Design Considerations for Medical Device Housing Die Casting

Producing high-quality medical housings requires expertise in both design and process engineering. Below are critical factors that determine the success of a die-cast housing project.

1. Design for Manufacturability (DFM)

Before production, Yuhui provides DFM reports to ensure every design can be efficiently manufactured and free from casting defects.

Key DFM guidelines include:

• Maintain uniform wall thickness to prevent shrinkage or warping.

• Add ribs for strength without excessive material.

• Design proper gating and venting systems to ensure smooth metal flow.

• Include fillets and draft angles to facilitate metal flow and part release.

• Optimize parting lines and sliders for complex geometries.

2. Material Selection

Yuhui specializes in aluminum and zinc die casting, both excellent choices for medical housings.

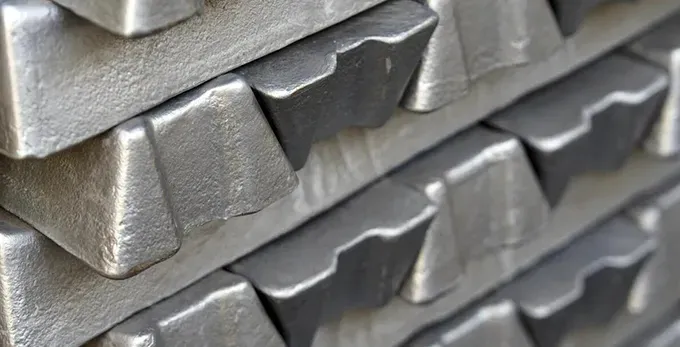

• Aluminum Alloys (e.g., ADC12, A380, A356)
  Lightweight, corrosion-resistant, and thermally conductive — ideal for enclosures that require strength and heat dissipation.

• Zinc Alloys (e.g., Zamak Series)
  High fluidity and dimensional accuracy — suitable for small, intricate housings or parts with fine details.

Material selection depends on device size, required strength, surface treatment, and thermal performance.

3. Die Casting Process Control

Yuhui ensures precision through strict control of casting parameters:

• Accurate temperature and pressure management during injection.

• Surface coating on molds to enhance release and extend tool life.

• Cooling system optimization for dimensional stability.

• Clean lubrication and mold maintenance to avoid impurities or air entrapment.

Each process stage is monitored to maintain consistent quality across batches.

4. CNC Machining and Surface Finishing

After casting, Yuhui performs CNC precision machining to achieve tight tolerances and assembly accuracy.
Finishing options include:

• Anodizing, powder coating, painting, polishing, or electroplating

• Chemical pretreatment for corrosion protection

• Surface texturing for improved appearance and grip

These finishes enhance durability, appearance, and resistance to disinfectants — essential for medical environments.

5. Quality Control and Certification

For medical applications, quality assurance and traceability are critical.
Yuhui enforces:

• Material and batch traceability

• Dimensional and mechanical inspections

• Surface defect and hardness testing

• Full documentation and process control

Although ISO 13485 (medical device quality system) is specific to medical applications, Yuhui’s existing certifications and rigorous processes already align with the principles of medical-grade manufacturing.

Advantages and Challenges of Die Casting in Medical Devices

Advantages

1. High precision and repeatability for consistent part dimensions.

2. Complex, thin-walled designs achievable with excellent detail.

3. Superior strength and rigidity compared to plastic housings.

4. Excellent heat dissipation and EMI shielding from metal materials.

5. Cost efficiency for medium to large production volumes.

Challenges

1. High initial mold investment for small-scale production.

2. Complex mold design required for intricate geometries.

3. Risk of casting defects if process parameters are not optimized.

4. Surface finishing consistency across large volumes.

5. Regulatory compliance for medical-grade applications.

From Concept to Production: Yuhui’s Streamlined Workflow

Yuhui’s workflow ensures every medical die-cast housing project is efficient and transparent:

1. Submit Design & Requirements (2D/3D drawings, material, surface finish)

2. DFM Review & Quotation

3. Mold Design & Prototype Development

4. Sample Testing & Customer Approval

5. Mass Production with Quality Monitoring

6. Final Inspection, Packaging & Delivery

This process guarantees fast response, stable production, and high-quality results — meeting the exacting standards of the medical industry.

Yuhui has successfully supported projects such as ultrasound machine aluminum housings and medical diagnostic device enclosures, demonstrating its proven capability in this field.

Conclusion

Medical Device Housing Die Casting represents the perfect balance of precision, performance, and productivity.
By combining advanced die casting technology, strong engineering expertise, and strict quality control, Yuhui Die Casting delivers medical housings that are durable, dimensionally stable, and visually refined.

For medical device manufacturers seeking a reliable partner with end-to-end die casting solutions, Yuhui provides the experience, capacity, and technical excellence needed to bring innovative products to life.
